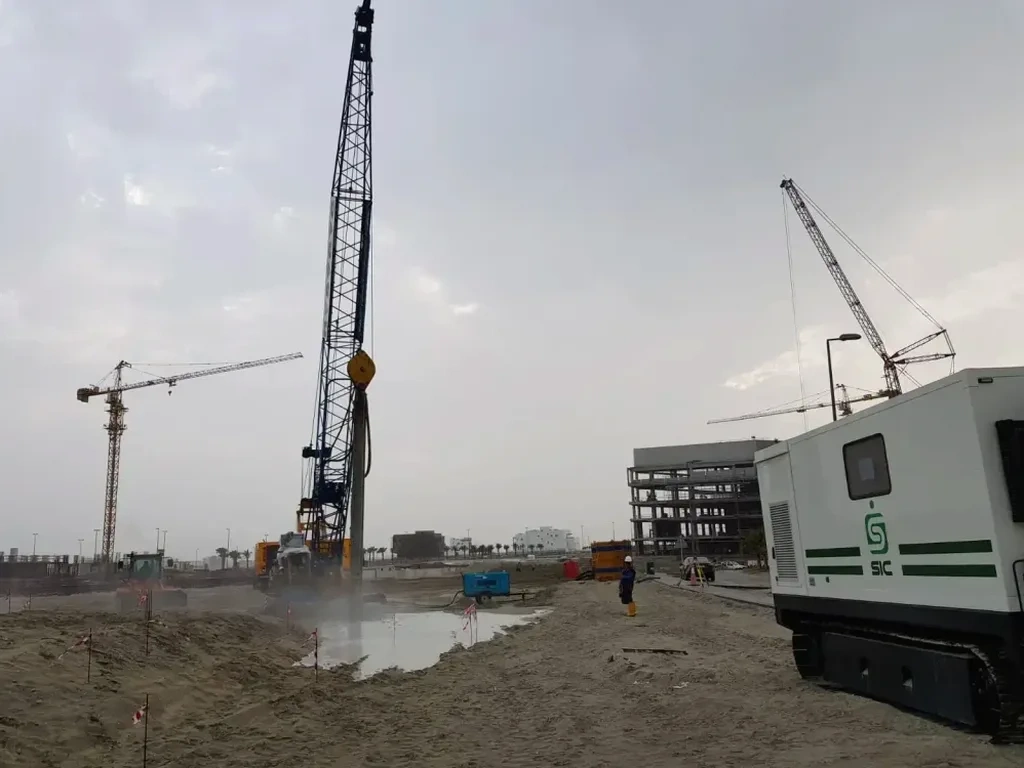

A common mistake on Sioux City construction sites is treating the loose alluvial sands along the Missouri River as competent bearing soil without deep improvement. The floodplain deposits east of the river bluffs can extend 40 to 60 feet of silty fine sand with SPT blow counts below 10. Standard over-excavation and recompaction rarely reach the depth needed to mitigate settlement or liquefaction risk. When a warehouse foundation near the former stockyards showed differential settlement of over three inches within two years, the root cause was untreated loose sand at 25 feet. Our vibrocompaction design targets these problematic strata directly. The process uses depth-controlled vibratory probes to densify granular soils in place, and we specify grid spacing, probe energy, and verification testing through CPT correlation to confirm relative density exceeds 70 percent across the treated zone. For sites with deeper soft layers, we integrate the densification program with stone columns to create composite ground improvement that handles both settlement and bearing capacity in a single mobilization.
Vibrocompaction transforms loose floodplain sand into dense, non-liquefiable ground without importing fill — a critical advantage on constrained urban sites in Sioux City.
Local ground factors
A five-story medical office building on a riverfront parcel encountered loose to very loose sand from 12 to 38 feet depth during our pre-design investigation. The geotechnical report flagged a cyclic resistance ratio below 0.15 for the design M7.0 scenario, placing the site firmly in the liquefaction-susceptible category under IBC Section 1803.5.12. Without deep densification, the foundation options narrowed to driven piles bearing on bedrock at nearly 80 feet, adding significant cost and schedule pressure. Our vibrocompaction design specified a two-phase treatment: an initial probe pass at 6-foot centers to break down any cemented sand lenses, followed by a final compaction pass at 5-foot centers with extended hold time at the critical 25-to-35-foot zone. Post-treatment CPT soundings confirmed a threefold increase in tip resistance across that interval. The project proceeded with conventional spread footings on the improved ground, and the contractor saved roughly six weeks compared to the deep pile alternative. For sites near the river where fill thickness varies unpredictably, we also recommend a seismic microzonation study to identify lateral spreading hazard zones before finalizing the densification layout.
Common questions
What does vibrocompaction design cost for a typical Sioux City commercial lot?
Engineering design fees for vibrocompaction on a standard commercial lot in Sioux City generally range from US$1,420 to US$4,540, depending on treatment area, depth of loose soils, and the number of verification soundings required. The cost covers the grid layout, energy specifications, liquefaction analysis, and the post-treatment verification report. Contractor mobilization and probe operation are separate, and we can help you obtain competitive bids from regional ground improvement contractors.
How deep can vibrocompaction effectively treat soil in Sioux City?
Standard vibratory probes can treat to depths of 65 feet in the alluvial sands common along the Missouri River. Deeper treatment is possible with leader extensions, but the practical limit in Sioux City is typically set by the depth to bedrock, which ranges from 50 to 80 feet in the riverfront area. Our designs specify the probe tip elevation based on the depth of loose sand confirmed by pre-design SPT or CPT soundings.
Which Sioux City soil types respond best to vibrocompaction?
Clean to slightly silty sands classified as SP or SP-SM under ASTM D2487 respond best. The alluvial deposits east of the bluffs are predominantly these materials. Soils with more than 15 percent silt or significant clay content do not densify effectively with vibration alone, and we may recommend alternative methods such as stone columns or rigid inclusions for those strata.
How do you verify that the ground improvement worked?
We specify pre- and post-treatment CPT or SPT soundings at grid centroid and edge locations. The acceptance criterion is typically a relative density greater than 70 percent or a factor of safety against liquefaction exceeding 1.3 under the design earthquake. For critical structures, we add cross-hole shear wave velocity testing to confirm stiffness improvement across the full treatment depth.
